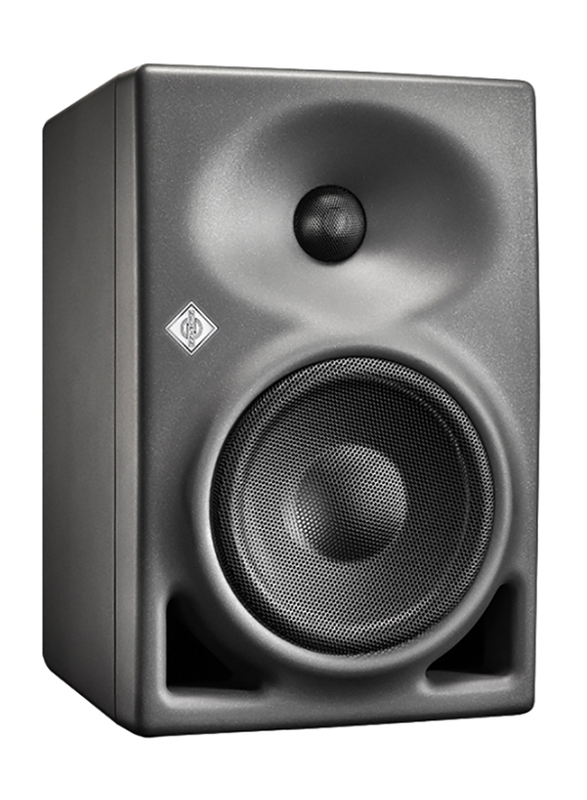

Neumann KH 120 A G UK Active Studio Monitor System, Grey

Precision redefined

The kh 120 is Neumann's trailblazer model and development yardstick for compact studio monitors. It has been a reference class for close-range monitoring since 2011. Enormous power reserves meet high-precision sound conduction. The result: maximum signal fidelity and distinctly contoured transients across the entire, neutrally designed frequency response. This enables you to precisely control tonal depth, spatial image and even the smallest details in the mix.

The kh 120 is a two-way bi-amplified monitor with thermally protected class-ab amplifiers (80 w each). Just like the drivers, its mathematically modeled dispersion (mmd) waveguide is calculated with an optimal level of precision. Sound distributed in a horizontally precise manner ensures flexibility in the listening position; the narrower vertical dispersion reduces the negative effects of nearby reflections - for example from a desk or mixing console. The finely controlled dispersion characteristics optimize reproduction in even the most varied of room configurations.

Best working environment: close to professional ears

The kh 120 is typically used in near-field applications such as project, music, broadcast and post-production studios for recording, mixing and mastering. It also available as a digital input “d" version.

Ports and high dynamics: no longer a contradiction

With its digital switched-mode power supply and bi-amplification, the kh 120 realizes sound pressure of up to 111.1 db and in doing so, retains a high-resolution and neutral representation across the entire frequency response. This provides sufficient energy for maximum dynamics without distortion and losses. As a result, the bass goes down to impressive 52 hz. Despite using ports, there is no “overhang" in the bass response. The transient response remains well in control. The optimized design of the drivers delivers clean sound right down to the lowest parts of the 50 hz region. This rich foundation offers enough room to work cleanly on the mix without the necessity for a supplementary subwoofer. In the demanding treble range, the specially developed, powerful alloy fabric dome ensures distortion-free reproduction.

The perfect complement: the kh 750 dsp subwoofer

In addition to its outstanding acoustic properties this subwoofer offers functions for non dsp-based Neumann monitors connected (analog) to its outputs regarding the interplay with the following tools:

Automatic monitor alignment - automatic room correction of stereo systems using the Neumann ma 1 measurement microphone (software for mac/pc)

Neumann. Control - free ipad-app for setup, operation, and room correction of stereo systems via guided and/or manual alignment

Features:

In-house simulated tweeter with alloy fabric dome

• Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
• Low-distortion high frequency reproduction

Elliptical Mathematically Modeled Dispersion (MMD) waveguide

• Smoother off -axis response
• More forgiving of diverse acoustical environments
• Wide horizontal dispersion

Freedom of movement across the mixing console

• Narrow vertical dispersion
• Reduces reflections off the mixing console

Two-color + dimmable Neumann logo

• Displays operation status and activation of the extensive protection system
• Dimmable for low lighting level conditions or behind the screen applications

In-house modeled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor (ELFF), magnetic shielding and flow optimized die cast basket

• Damping of break up modes brings low distortion at high sound levels
• Linear pistonic motor gives a very low harmonic distortion even at high excursions
• Reduced air noise and improved rocking modes

Robust metal grilles

• Protects against mechanical damage

Large high-capacity flow-optimized bass reflex ports with pipe resonance damping

• Fast bass transient response
• Reduced bass compression at high output levels
• No coloration from organ pipe resonance
• Easier to mount in tight spaces

Compact aluminum cabinet

• Robust package for a long life
• No standing wave resonances
• Excellent heat dissipation

One-piece front panel with no discontinuities

• Reduced diffraction and smoother frequency response

4-position bass, low-mid and treble acoustical controls

• More control in diverse acoustical environments
• Fast acoustical set up in mobile applications
• Repeatable settings after moving loudspeakers

Wide range input gain and output level controls

• Easier interfacing with signal sources

Fully documented extensive mounting hardware range

• More flexibility in more diverse locations and backwards compatible to previous products
• Easy advanced planning for installations

Display dimmer and ground lift

• For low lighting level conditions or behind the screen applications
• Reduced noise in electrically noisy environments and over-comes ground loops

Universal switched-mode power supply (100 … 240 V)

• One version works in any country and robust to poor quality mains supply

XLR electronically balanced analogue input

• Standard interfacing to professional equipment

More Features

Production consistency due to individual hand alignment in final testing

• Any KH 120 is “pair matched" to any other KH 120

Separate fast acting thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers

• Woofer soft clip and excursion limiters
• Increases system reliability
• Allows extraction of the maximum performance

Powerful amplifiers with large headroom and overheat limiting

• Improved transient response
• Assured reliability and safety

• Material: Mixed Material
• Color Name: Grey
• Model Number: KH 120 A G UK
• Music Brand: Neumann
• Music Electronics Type: Speaker Systems
